Need to fit a brass tap to a barrel or change a wooden tap for a brass tap but cannot find a fitting? These adaptors are designed for fitting standard BSP threaded plastic or metal taps to wooden barrels. The adaptor is tapered with a spiral thread on the outside to assist fitting and sealing to the barrel. They are fitted by simply screwing the adaptor directly into a suitably sized hole. Glue or sealant is not required.
The adaptor provides a standard BSP threaded connection into which a standard tap can be screwed.
The adaptors are available with either ½” BSP or ¾” BSP connections. A ½” BSP tap will generally give an adequate flow of water but those that require a higher flow rate may wish to fit a ¾” tap.

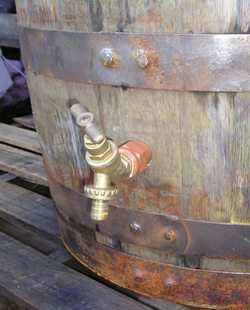

They are also available in a range of diameters to suit different hole sizes. This makes them ideal for replacing a wooden tap in an oak barrel with a brass tap for example, since it is possible to re-use a hole drilled for a wooden tap by selecting an adaptor to fit that hole.
Once the adaptor is fitted to the barrel it is easy to fit your brass tap. It is usually then possible to turn the tap and adaptor further to get a tight fit.
½ inch BSP brass taps are suitable for use with the ½” adaptors and ¾ inch plastic taps can be used with the ¾” adaptors.
Material: Food grade plastic.
Delivery Charge: Reduced rate of £4.00 unless they are part of a larger order.
CN112
100mm
19mm - 22mm
½”
£9.99
CN212
100mm
22mm - 25mm
½”
£9.99
CN234
100mm
22mm - 25mm
¾”
£12.99
CN334
100mm
23mm - 30mm
¾”
£12.99
CN434
100mm
30mm - 35mm
¾”
£12.99
CN534
100mm
35mm - 40mm
¾”
£12.99
