Large Tanks

-> Department: Water Butts (show all categories in department)

Store hundreds of gallons of water.
Connect directly to a drainpipe using a rain diverter.
Position away from your property and use one or more pumping stations to feed water to the tank from one or more drainpipes.
Connect to a drainpipe using a rain diverter and also feed from other drainpipes using pumping stations.

An average sized home will occupy an area of approximately 750 sq feet. With 1cm of rainfall a home of this size will shed approximately 700 litres (150 gallons) of water.

Installation Options

The two options that we recommend for installation are the Drainpipe Diverter option and the Pumping System option.

Drainpipe Diverter Option

This option is to install the storage tank in close proximity to a drainpipe and use a drainpipe diverter to feed water into the tank. The diverter is fitted to the drainpipe by cutting a 30mm section of pipe out and slotting the diverter into the gap. Once the diverter is fitted it directs water to the tank until the tank is full; any further water is then directed down the drainpipe.
large storage tank with drainpipe diverter

large storage tank with drainpipe diverter

The recommended materials required for this option are:

Titan Tank.
Drainpipe Diverter Kit.
Tank Tap & Fittings.

To order this option select the tank size you require from the table below and also select a drainpipe diverter kit and a tank tap with fittings.

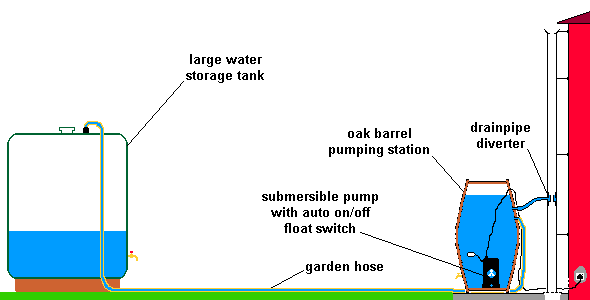

Pumping system Option

This option is to install the storage tank away from your property, possibly behind a garage or in the bottom corner of the garden where it can be screened off if desired. Pumping stations are then fitted at each drainpipe where water is to be collected. These stations contain a submersible pump with an automatic on/off float switch. When the water level in the pumping station barrel rises above a set level the float switches the pump on. When the water level in the barrel is low enough the float switches the pump off. Each pumping station is connected to the tank using standard garden hose (not supplied). The hose can be routed around the edges of your garden or dug into the ground.
large storage tank pumping system

The recommended materials required for this option are:

Titan Tank.
Hose pipe to tank connection kit.
Tank Tap & Fittings.
One or more Pumping Stations.
13mm Garden Hose (not supplied).

To order this option select the tank size you require from the table below and also select a garden hose fitting kit and a tank tap with fittings. After adding the tank to your shopping basket you can then chose your pumping stations.

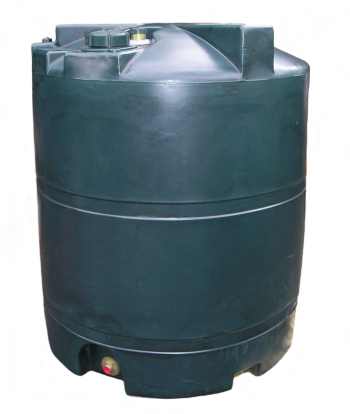

Titan Tank Selection

Our range of Titan tanks have capacities from 1300 litres (300 gallons) to 10,000 litres (2200 gallons). One of these vessels can enable you to store massive quantities of water for your garden.

Titan tanks are:

Guaranteed for 10 years.
Manufactured from quality medium density polythene.
Tough and durable.
Weatherproof.
Maintenance Free.
Ultraviolet stabilised for protection from sunlight.
Rotationally moulded in one piece to provide a stress free container of uniform wall thickness.
Fitted with sealed manhole for easy access.

Code	Capacity / litres	Capacity / gallons	Outlet	Diameter/mm	Height/mm
V1300BLWAT	1300	300	1" BSP	1190mm	1420mm
V2600BLWAT	2600	570	1" BSP	1610mm	1430mm
V3600BLWAT	3600	800	1½" BSP	1840mm	1750mm
V5000BLWAT	5000	1100	1½" BSP	2010mm	2240mm
V10000BLWAT	10000	2200	2" BSP	2640mm	2480mm

Please note that all dimensions are approximate. These tanks are not suitable for storing potable water for human consumption.

Each tank has a manhole entry and a threaded pipe entry at the top, which may be used filling. A tap may be fitted to the threaded outlet at the bottom of the vessel.

Code	Capacity / litres	Price	Select
V1300BLWAT	1300	£359.00
V2600BLWAT	2600	£579.00
V3600BLWAT	3600	£799.00
V5000BLWAT	5000	£1,399.00
V10000BLWAT	10000	£2,599.00

Add a tank tap with fittings to the order at an additional £21.99.

Add a drainpipe diverter kit to the order at an additional £12.00.

Add a hose pipe connection kit to the order at an additional £21.99.

Titan tank prices include VAT and mainland UK delivery.

Buy Titan Tank Selection

Pumping Stations

Details are available on the .
